Squared9 Pro v1
ลิงก์ TradingView
คำอธิบาย
Squared9 Pro v1.0 (strategy) combines classic Gann geometry with modern momentum checks to find high-conviction reversal zones.
The strategy requires:
1. Price to be within a user-defined percentage of Gann levels (based on recent pivot highs/lows and Square of Nine calculations).
2. Divergence on Stochastic and/or MACD (price and indicator moving in opposite directions).
3. Current price to respect the trend direction on a higher timeframe EMA.
4. A candle with a strong body relative to its range.
Here's what it looks for:
- Price is close to important Gann levels (calculated from recent swing highs/lows using Square of Nine math — shown as colored horizontal lines).
- Stochastic and MACD indicators show divergence (price makes new high/low but indicators do not — a classic reversal clue).
- The overall trend on a higher timeframe (default 4-hour) supports the trade direction via a 50-period EMA filter.
- The current candle has a strong directional body (not a doji or tiny range — minimum body size is adjustable).
When these line up, a green triangle appears below the bar for a potential long entry, or a red triangle above for short. Stop-loss and take-profit are set automatically using ATR multiples (default 1.7× for stop, 3.2× for target), with an optional trailing stop.
All settings (lookback periods, tolerances, ATR multipliers, etc.) can be changed in the inputs panel.
This script is designed for traders who want confluence-based signals rather than relying on a single indicator.
Feedback is welcome.

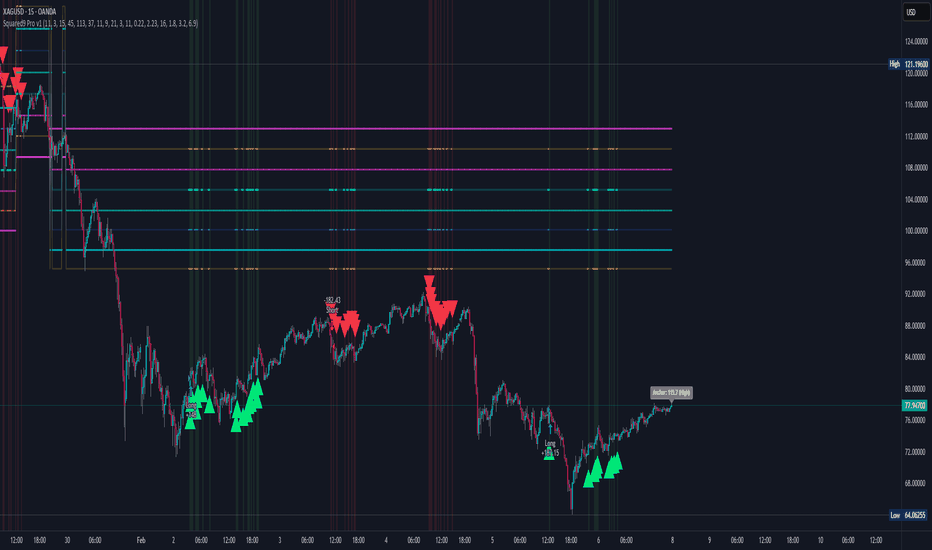

รูป Preview
Pine Script Source
// This Pine Script® code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/
//@version=6
strategy("Squared9 Pro v1", overlay=true, max_labels_count=500,
initial_capital=10000, default_qty_type=strategy.percent_of_equity, default_qty_value=2,
commission_type=strategy.commission.percent, commission_value=0.1)
// ────────────────────────────────────────────────
// Inputs – Organized with groups & inline
// ────────────────────────────────────────────────
// === General & Display ===
pivotLeftRight = input.int(10, "Pivot Lookback (Left/Right)", minval=3, group="General & Display")
proximityPct = input.float(1.75, "Gann Proximity Tolerance (%)", minval=0.1, step=0.1, group="General & Display")
useCardinal = input.bool(true, "Use Cardinal Levels", inline="CardOrd", group="General & Display")
useOrdinal = input.bool(true, "Use Ordinal Levels", inline="CardOrd", group="General & Display")
plotCardinal = input.bool(true, "Plot Cardinal Levels", inline="Plot", group="General & Display")
plotOrdinal = input.bool(true, "Plot Ordinal Levels", inline="Plot", group="General & Display")
htf = input.timeframe("240", "Higher Timeframe Filter", group="General & Display")
htfEmaLen = input.int(50, "HTF EMA Length", group="General & Display")
// === Core Indicators ===
stochLen = input.int(200, "Stochastic Length", inline="StochSmooth", group="Core Indicators")
smoothK = input.int(62, "Stoch %K Smoothing", inline="StochSmooth", group="Core Indicators")
smoothD = input.int(13, "Stoch %D Smoothing", group="Core Indicators")
macdFast = input.int(12, "MACD Fast", inline="MACD", group="Core Indicators")
macdSlow = input.int(26, "MACD Slow", inline="MACD", group="Core Indicators")
macdSignal = input.int(9, "MACD Signal", inline="MACD", group="Core Indicators")
// === Signal Filters ===
useGannProximity = input.bool(true, "Require Gann Proximity", group="Signal Filters")
useDivergence = input.bool(true, "Require Divergence (Stoch or MACD)", group="Signal Filters")
useStrongCandle = input.bool(true, "Require Strong Candle Body", group="Signal Filters")
useHTFAlignment = input.bool(true, "Require HTF Trend Alignment", group="Signal Filters")
useFallbackDiv = input.bool(true, "Fallback: Oversold/Overbought when no pivot div", group="Signal Filters")
divLookback = input.int(8, "Divergence Swing Lookback", group="Signal Filters")
candleBodyRatio = input.float(0.5, "Min Candle Body Ratio (0.1–1.0)", minval=0.1, maxval=1.0, step=0.05, group="Signal Filters")
minPivotRangeMult = input.float(0.5, "Min Pivot Range × ATR (for anchor update)", group="Signal Filters")
// === Risk & Position Management ===
atrLength = input.int(14, "ATR Length", minval=5, group="Risk & Position Management")
atrMultSL = input.float(1.7, "ATR Multiplier – Stop Loss", minval=0.5, step=0.1, inline="SLTP", group="Risk & Position Management")
atrMultTP = input.float(3.2, "ATR Multiplier – Take Profit", minval=1.0, step=0.1, inline="SLTP", group="Risk & Position Management")
useFixedSLTP = input.bool(true, "Use Fixed ATR SL/TP (disable for trailing only)", group="Risk & Position Management")
useTrailingStop = input.bool(false,"Enable Trailing Stop", group="Risk & Position Management")
trailMult = input.float(2.5, "Trailing ATR Multiplier", minval=1.0, step=0.1, group="Risk & Position Management")
// === Alerts & Misc ===
showAlerts = input.bool(true, "Create Alert Conditions", group="Alerts & Misc")
// ────────────────────────────────────────────────
// Calculations
// ────────────────────────────────────────────────
htfEma = request.security(syminfo.tickerid, htf, ta.ema(close, htfEmaLen), lookahead=barmerge.lookahead_off)
htfBull = close > htfEma
htfBear = close < htfEma
k = ta.stoch(close, high, low, stochLen)
d = ta.sma(k, smoothK)
d2 = ta.sma(d, smoothD)
[macdLine, signalLine, hist] = ta.macd(close, macdFast, macdSlow, macdSignal)
atrVal = ta.atr(atrLength)
pivotLow = ta.pivotlow(low, pivotLeftRight, pivotLeftRight)
pivotHigh = ta.pivothigh(high, pivotLeftRight, pivotLeftRight)
var float lastPivotLow = na
var float lastPivotHigh = na
// Improved pivot filter: check range on the actual pivot bar
if not na(pivotLow) and (high[pivotLeftRight] - low[pivotLeftRight]) > atrVal[pivotLeftRight] * minPivotRangeMult
lastPivotLow := pivotLow
if not na(pivotHigh) and (high[pivotLeftRight] - low[pivotLeftRight]) > atrVal[pivotLeftRight] * minPivotRangeMult
lastPivotHigh := pivotHigh
float midPoint = na(lastPivotLow) or na(lastPivotHigh) ? na : (lastPivotLow + lastPivotHigh) / 2
bool useHighAsAnchor = not na(midPoint) and close < midPoint
float anchorPrice = useHighAsAnchor ? lastPivotHigh : lastPivotLow
var float[] gannLevels = array.new_float(0)
float gann45 = na
float gann90 = na
float gann135 = na
float gann180 = na
float gann225 = na
float gann270 = na
float gann315 = na
float gann360 = na
if not na(anchorPrice) and anchorPrice > 0
float sqrtAnchor = math.sqrt(anchorPrice)
int direction = useHighAsAnchor ? -1 : 1
gann45 := math.pow(sqrtAnchor + direction * 0.125, 2)
gann90 := math.pow(sqrtAnchor + direction * 0.25, 2)
gann135 := math.pow(sqrtAnchor + direction * 0.375, 2)
gann180 := math.pow(sqrtAnchor + direction * 0.5, 2)
gann225 := math.pow(sqrtAnchor + direction * 0.625, 2)
gann270 := math.pow(sqrtAnchor + direction * 0.75, 2)
gann315 := math.pow(sqrtAnchor + direction * 0.875, 2)
gann360 := math.pow(sqrtAnchor + direction * 1.0, 2)
array.clear(gannLevels)
if useCardinal
array.push(gannLevels, gann90)
array.push(gannLevels, gann180)
array.push(gannLevels, gann270)
array.push(gannLevels, gann360)
if useOrdinal
array.push(gannLevels, gann45)
array.push(gannLevels, gann135)
array.push(gannLevels, gann225)
array.push(gannLevels, gann315)
bool nearGann = false
for i = 0 to array.size(gannLevels) - 1
float lvl = array.get(gannLevels, i)
if not na(lvl) and math.abs(close - lvl) <= close * (proximityPct / 100)
nearGann := true
// ────────────────────────────────────────────────
// Divergence Detection (Improved)
// ────────────────────────────────────────────────
stochLow = ta.pivotlow(d2, divLookback, divLookback)
stochHigh = ta.pivothigh(d2, divLookback, divLookback)
priceLow = ta.pivotlow(low, divLookback, divLookback)
priceHigh = ta.pivothigh(high, divLookback, divLookback)
// Track approximate previous swing points
var float prevPriceLow = na
var float prevPriceHigh = na
var float prevStochLow = na
var float prevStochHigh = na
var float prevHistLow = na
var float prevHistHigh = na
if not na(priceLow)
prevPriceLow := priceLow[divLookback * 2]
prevStochLow := d2[divLookback * 2]
if not na(priceHigh)
prevPriceHigh := priceHigh[divLookback * 2]
prevStochHigh := d2[divLookback * 2]
histLow = ta.pivotlow(hist, divLookback, divLookback)
histHigh = ta.pivothigh(hist, divLookback, divLookback)
if not na(histLow)
prevHistLow := hist[divLookback * 2]
if not na(histHigh)
prevHistHigh := hist[divLookback * 2]
// Bullish
bool stochBullDiv = not na(priceLow) and not na(stochLow) and
priceLow < prevPriceLow and
stochLow > prevStochLow and
stochLow < 40
bool macdBullDiv = not na(histLow) and not na(priceLow) and
histLow > prevHistLow and
priceLow < prevPriceLow and
histLow < 0
bool fallbackBullDiv = d2 < 35
// Bearish
bool stochBearDiv = not na(priceHigh) and not na(stochHigh) and
priceHigh > prevPriceHigh and
stochHigh < prevStochHigh and
stochHigh > 60
bool macdBearDiv = not na(histHigh) and not na(priceHigh) and
histHigh < prevHistHigh and
priceHigh > prevPriceHigh and
histHigh > 0
bool fallbackBearDiv = d2 > 65
bool hasBullDiv = (stochBullDiv or macdBullDiv or (useFallbackDiv and fallbackBullDiv))
bool hasBearDiv = (stochBearDiv or macdBearDiv or (useFallbackDiv and fallbackBearDiv))
bullCandle = close > open and (close - open) >= (high - low) * candleBodyRatio
bearCandle = close < open and (open - close) >= (high - low) * candleBodyRatio
bool gannOk = not useGannProximity or nearGann
bool divOkBull = not useDivergence or hasBullDiv
bool candleOkBull = not useStrongCandle or bullCandle
bool htfOkBull = not useHTFAlignment or htfBull
bool longSignal = gannOk and divOkBull and candleOkBull and htfOkBull
bool gannOkShort = not useGannProximity or nearGann
bool divOkBear = not useDivergence or hasBearDiv
bool candleOkBear = not useStrongCandle or bearCandle
bool htfOkBear = not useHTFAlignment or htfBear
bool shortSignal = gannOkShort and divOkBear and candleOkBear and htfOkBear
// ────────────────────────────────────────────────
// Strategy Entries & Exits
// ────────────────────────────────────────────────
var float entryPrice = na
var float entryATR = na
// Entries
if longSignal and strategy.position_size <= 0
strategy.entry("Long", strategy.long)
entryPrice := close
entryATR := atrVal
if shortSignal and strategy.position_size >= 0
strategy.entry("Short", strategy.short)
entryPrice := close
entryATR := atrVal
// Exits – Long
if strategy.position_size > 0
float slLong = useFixedSLTP ? (entryPrice - entryATR * atrMultSL) : na
float tpLong = useFixedSLTP ? (entryPrice + entryATR * atrMultTP) : na
int trailDist = useTrailingStop ? math.round(atrVal * trailMult / syminfo.mintick) : na
strategy.exit("Exit Long", from_entry="Long",
stop = slLong,
limit = tpLong,
trail_points = trailDist,
trail_offset = trailDist)
// Exits – Short
if strategy.position_size < 0
float slShort = useFixedSLTP ? (entryPrice + entryATR * atrMultSL) : na
float tpShort = useFixedSLTP ? (entryPrice - entryATR * atrMultTP) : na
int trailDist = useTrailingStop ? math.round(atrVal * trailMult / syminfo.mintick) : na
strategy.exit("Exit Short", from_entry="Short",
stop = slShort,
limit = tpShort,
trail_points = trailDist,
trail_offset = trailDist)
// ────────────────────────────────────────────────
// Visuals
// ────────────────────────────────────────────────
plotshape(longSignal, "LONG", style=shape.triangleup, location=location.belowbar, color=color.lime, size=size.normal)
plotshape(shortSignal, "SHORT", style=shape.triangledown, location=location.abovebar, color=color.red, size=size.normal)
bgcolor(longSignal ? color.new(color.green, 88) : shortSignal ? color.new(color.red, 88) : na)
// Gann plots...
plot(gann90, title="Gann 90°", color = longSignal or shortSignal ? color.orange : color.new(color.orange, 70), linewidth=2)
plot(gann180, title="Gann 180°", color = longSignal or shortSignal ? color.new(#00d4d4, 0) : color.new(#00d4d4, 80), linewidth=3)
plot(gann270, title="Gann 270°", color = longSignal or shortSignal ? color.blue : color.new(color.blue, 80), linewidth=2)
plot(gann360, title="Gann 360°", color = longSignal or shortSignal ? color.yellow : color.new(color.yellow, 80), linewidth=2)
// Ordinal plots (conditional display)
plot(gann45, title="45°", color=color.fuchsia, style=plot.style_circles, linewidth=1, display=plotOrdinal?display.all:display.none)
plot(gann135, title="135°", color=color.purple, style=plot.style_circles, linewidth=1, display=plotOrdinal?display.all:display.none)
plot(gann225, title="225°", color=color.teal, style=plot.style_circles, linewidth=1, display=plotOrdinal?display.all:display.none)
plot(gann315, title="315°", color=color.aqua, style=plot.style_circles, linewidth=1, display=plotOrdinal?display.all:display.none)
// Anchor debug label
if barstate.islast and not na(anchorPrice)
label.new(bar_index, high, "Anchor: " + str.tostring(anchorPrice, "#.##") + (useHighAsAnchor ? " (High)" : " (Low)"),
style=label.style_label_down, color=color.gray, textcolor=color.white, size=size.small)
// ────────────────────────────────────────────────
// Alerts
// ────────────────────────────────────────────────
alertcondition(showAlerts and longSignal,
title = "Squared9 Pro",
message = "Squared9 Pro LONG @ {{close}} | Price: {{close}}, Anchor: {{plot_0}}"
)
alertcondition(showAlerts and shortSignal,
title = "Squared9 Pro",
message = "Squared9 Pro SHORT @ {{close}} | Price: {{close}}, Anchor: {{plot_0}}"
)
