Overview
This indicator is a Supertrend-style trend follower that confirms direction changes only after a bar closes. Trend flips are determined using the previous bar’s close relative to the bands, which helps avoid intrabar changes during live candles.

How it works

Computes ATR (Average True Range)
Builds upper/lower bands using ATR and a multiplier
Updates trend direction only when a prior candle confirms a break of the band


Confirmation logic (bar-close based)
Trend direction is updated using conditions based on the previous candle, such as:

close > upper → confirm uptrend
close < lower → confirm downtrend

Because signals are confirmed on the prior bar, trend changes and markers are displayed only when confirmation exists.

Signals

Uptrend confirmation: prior candle closes above the upper band → bullish marker
Downtrend confirmation: prior candle closes below the lower band → bearish marker


Inputs

ATR Length (default 10)
ATR Multiplier (default 3.0)


Notes
This script is intended for bar-close workflows. Behavior and responsiveness may differ across markets and timeframes depending on volatility and chosen settings.

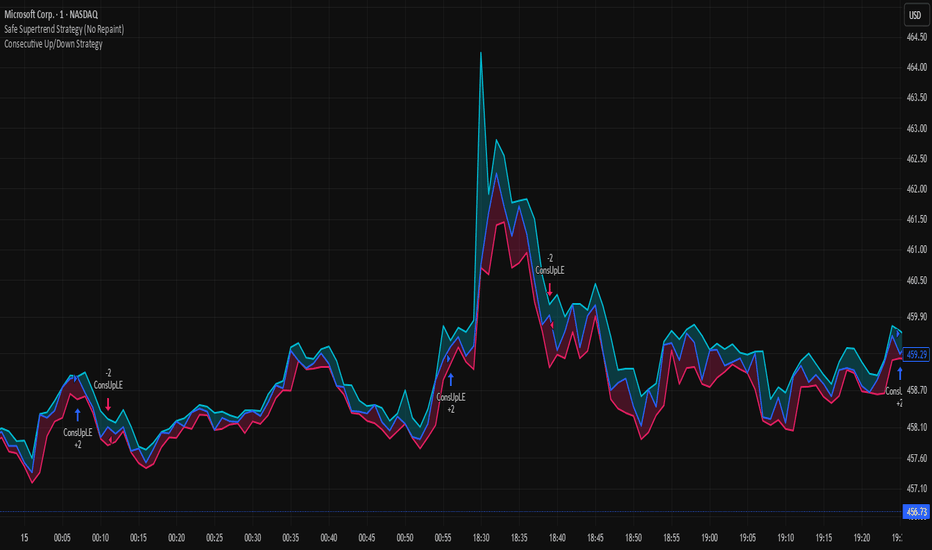

รูป Preview

Pine Script Source

// This Pine Script® code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/
// © AIScripts

//@version=6
strategy("Safe Supertrend Strategy (No Repaint)", overlay=true, margin_long=100, margin_short=100)

// Inputs
atrLen  = input.int(10, "ATR Length")
atrMult = input.float(3.0, "ATR Multiplier")

// Core Calculations
atr   = ta.atr(atrLen)
ma    = ta.sma(close, atrLen)
upper = ma + atr * atrMult
lower = ma - atr * atrMult

// Direction logic (non-repainting)
// Uses previous bar values ONLY → all flips are confirmed
var int dir = 0

if close[1] > upper[1]
    dir := 1
else if close[1] < lower[1]
    dir := -1
else
    dir := dir[1]  // hold trend

// Plot reversal markers
plotshape(dir == 1 and dir[1] != 1,
     title="Bull Start", location=location.belowbar,
     style=shape.triangleup, color=color.new(color.green, 0), size=size.small)

plotshape(dir == -1 and dir[1] != -1,
     title="Bear Start", location=location.abovebar,
     style=shape.triangledown, color=color.new(color.red, 0), size=size.small)

// Strategy logic
longSignal  = dir == 1 and dir[1] != 1
shortSignal = dir == -1 and dir[1] != -1

if longSignal
    strategy.entry("Long", strategy.long)

if shortSignal
    strategy.entry("Short", strategy.short)
// Optional exit on reverse signals
if strategy.position_size > 0 and shortSignal
    strategy.close("Long")
if strategy.position_size < 0 and longSignal
    strategy.close("Short")
